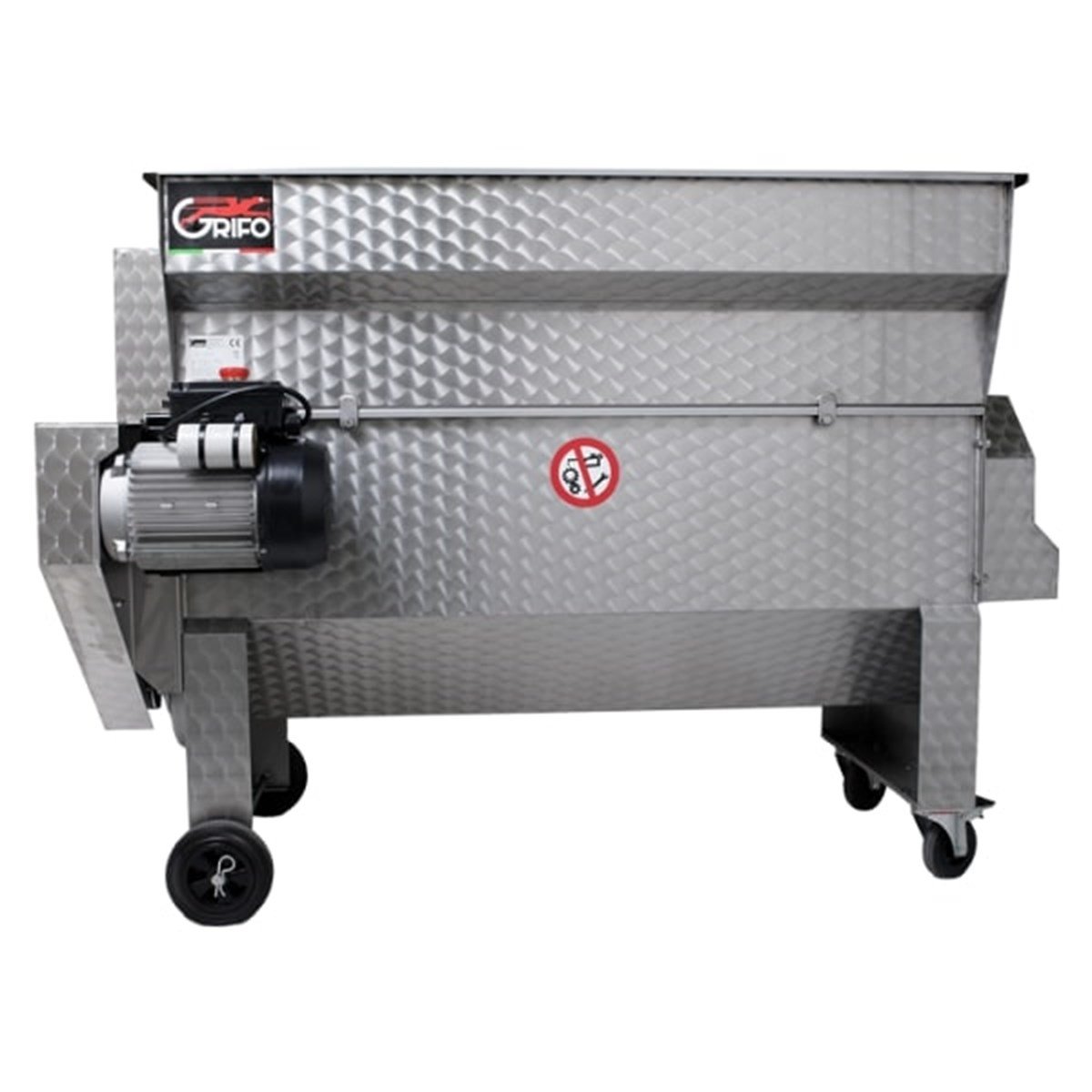

Stainless Steel Grape Crusher with Centrifugal Pump Q.50 Openable

Product type
Oenological machine – Stainless steel grape crusher with centrifugal pump

Features

mm 1450×750 h 1060+41

Stainless-steel centrifugal pump

Weight 140 Kg

Electric motor hp 3

Hourly production 4000/5000 Kg

Entirely built in stainless-steel, it is sturdy and tough. The DVEP50I model is the biggest and most advanced in Grifo’s range, and its great size and high-quality construction allow for an hourly production of 5000 Kg/H.Equipped with a great loading bucket with a screw conveyor to bring the grapes toward the destemming shaft. This model is unique because of the rotating stainless-steel grid, which has better performance than the fixed ones. The powerful engine allows for the functioning of all the mechanisms: the upper screw conveyor, the destemming shaft and the lower screw conveyor, which brings the must towards the pump, so that it can be pumped in the barrel.The machine is openable and the grid is removable, making the insides easy to clean. The 4 wheels, two of which are swivel castors, make the DVEP50I easy to move despite the great size.

*It is not suitable for micro export regulations, just for partial loading.
