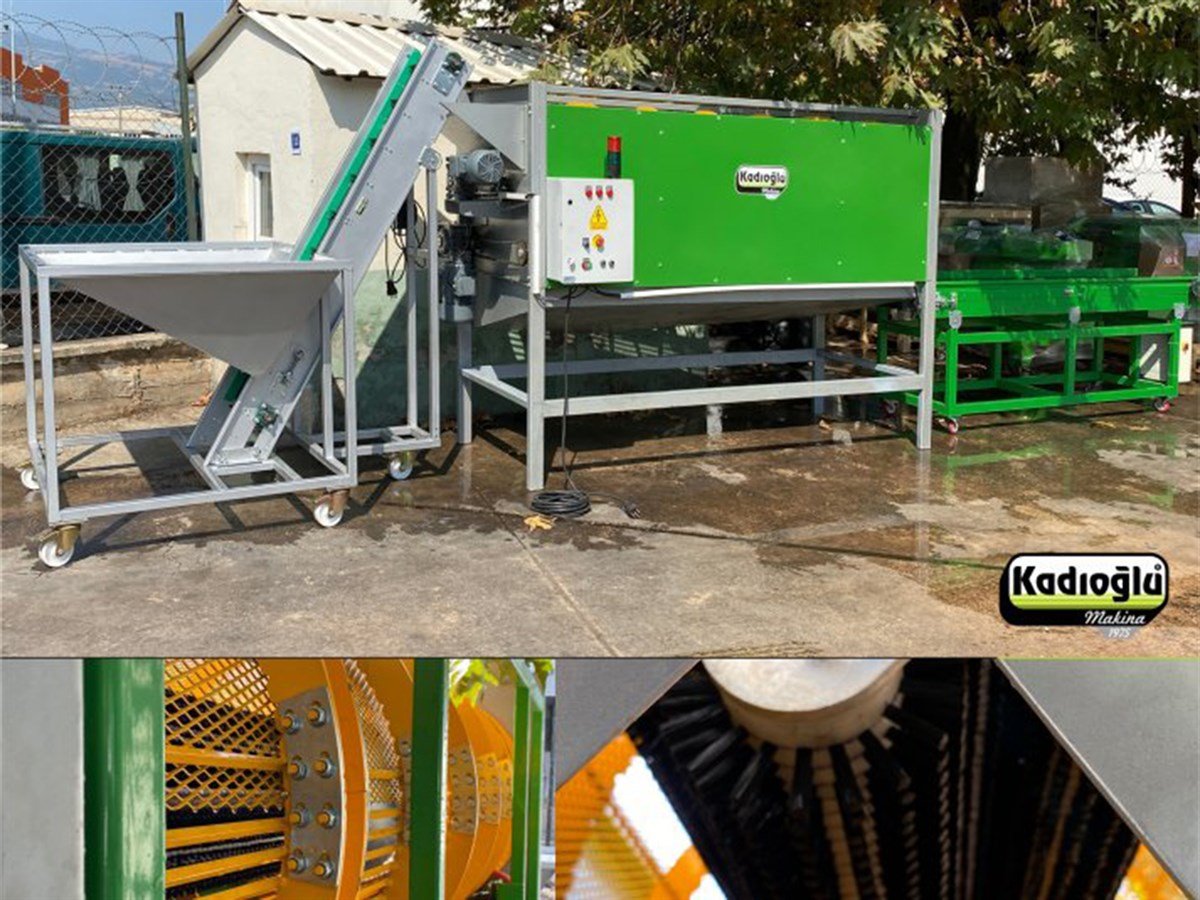

Magnum 3 – 3 Meter Double Drum With Brush, Horizontal Walnut Hulling Machine
Magnum 3 – 3 Meter Double Drum With Brush, Horizontal Walnut Hulling Machine
Magnum 3 – 3 Meter Double Drum With Brush, Horizontal Walnut Hulling Machine
Magnum 3 – 3 Meter Double Drum With Brush, Horizontal Walnut Hulling Machine

Magnum 3 – 3 Meter Double Drum With Brush, Horizontal Walnut Hulling Machine

Price : $9,971





* ROLLING AND DIRECTION ADJUSTABLE HORIZONTAL WALNUT PEELING MACHINES * They are suitable for high tonnage jobs. Besides single use It is used as a unit in facility projects. It is suitable for professional businesses with its unmatched low crushing ratio.

Magnum 3 Horizontal Walnut Peeling Machine peels with a double drum in the first stage of the walnut peeling process, and cleans with a single drum and brush in the second stage. This system provides up to 60% faster peeling compared to single drum machines and increases the quality of walnut cleaning.

Magnum 3, which has a walnut peeling capacity of 8 - 16 tons for 1 hour, is a model produced for professional businesses. In our continuous system walnut processing plant installations, we also use walnut as a green shell cleaning unit.

Featured Features:
Sensitive speed adjustment.
Double drum with adjustable working direction. (Inner and outer separate or can turn in the same direction)
Double drum pre-cleaning, brush final cleaning.
Automatic drain cover that opens with the engine.
The 3-meter Magnum model is offered as a set or a single unit with Magnum 3 conveyors.

The Conveyor MAGNUM 3 Model includes:
MAGNUM 3 Walnut Peeling Unit
Feed hopper and conveyor
Visual separation horizontal conveyor with adjustable working speed

Contents of the Non-Conveyor  MAGNUM 3 Model:
Magnum 3 Walnut Peeling Unit
Enlarged or standard size walnut entrance bunker

Technical details
Brand Kadıoğlu
Model Magnum 3
Origin Turkey
Height 205 cm
Length 320 cm
Width 120 cm
Weight 1050 kg (single unit without conveyor)
Drum volume 1350 Liter
Energy Source 380 V Three Phase
Feature 1 Double drum
Feature 2 Brushed final cleaning
Feature 3 Fine speed adjustment
Feature 4 Auto cover
Feature 5 Independent bidirectional rotatable drums







*It is not suitable for micro export regulations, just for partial loading.Please contact us for additional delivery costs for your country before order.
