* ROLLING AND DIRECTION ADJUSTABLE HORIZONTAL WALNUT PEELING MACHINES * They are suitable for high tonnage jobs. Besides single use It is used as a unit in facility projects. It is suitable for professional businesses with its unmatched low crushing ratio.

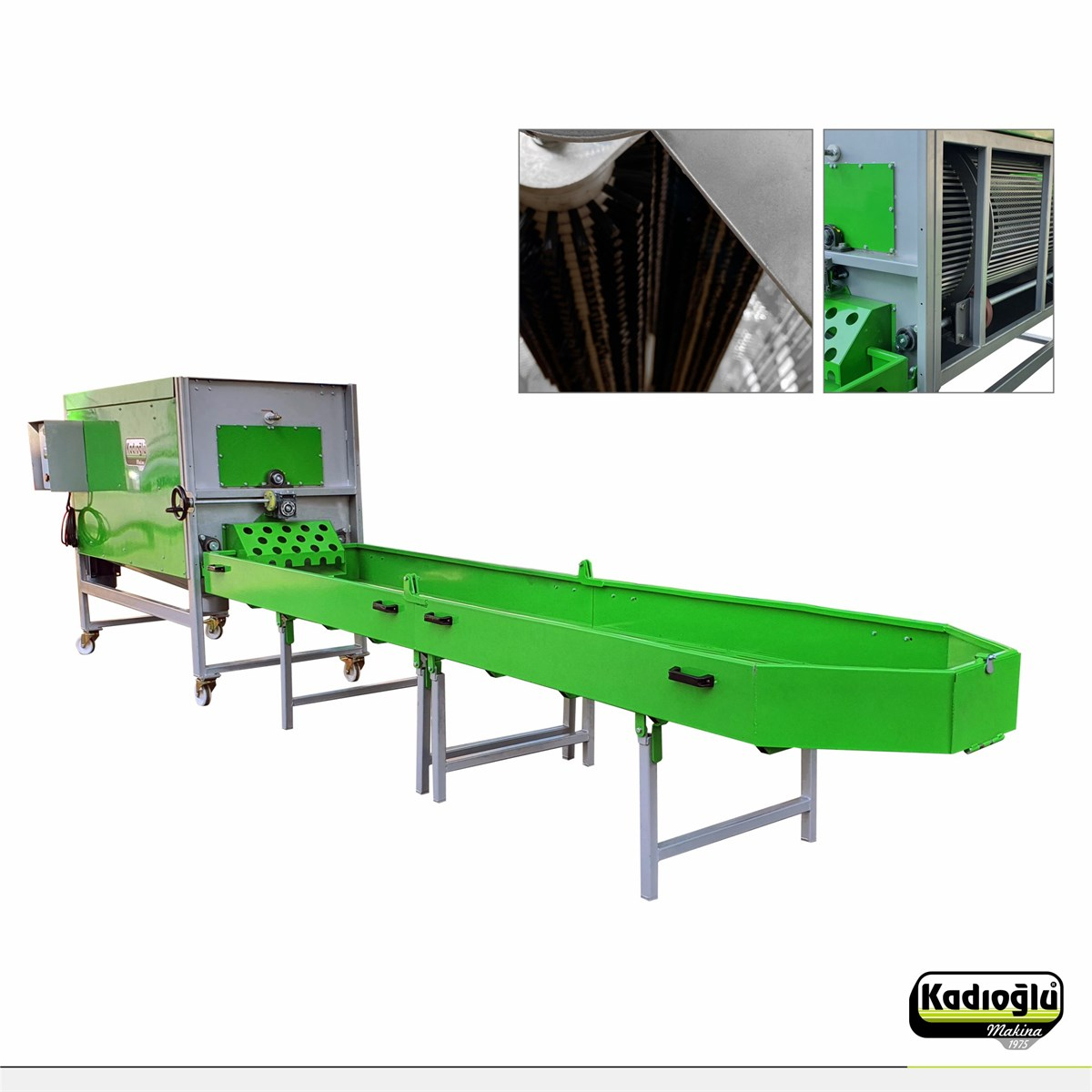

Magnum 2 Closed System, Double-drum, Brushed Horizontal Walnut Peeling Machine performs peeling with a double drum in the first stage of the walnut peeling process, and cleaning with a single drum and brush in the second stage. This system provides up to 60% faster peeling compared to single drum machines and increases the quality of walnut cleaning.
Magnum 2, which has a walnut peeling capacity of 6 - 13 tons for 1 hour depending on the shell condition of the walnut, is a model produced for professional businesses. In our continuous system walnut processing plant installations, we also use walnut as a green shell cleaning unit.
Featured Features:
Sensitive speed adjustment.
Economic evacuation table.
Enlarged walnut entrance bunker.
Double drum with adjustable working direction. (inside and outside rotate in the same direction, at different speeds)
Double drum pre-cleaning, brush final cleaning.
Manual drain cover.
The 2-meter Magnum model is offered with Magnum 2 conveyors as a set or as a single unit.
The Conveyor Model of MAGNUM 2 includes:
MAGNUM 2 (2 Meters) Walnut Peeling Unit
Feed hopper and conveyor
Visual separation horizontal conveyor with adjustable working speed
Contents of the Non-Conveyor of MAGNUM 2 Model:
Magnum 2 Walnut Peeling Unit
Enlarged walnut entrance bunker
Economic visual sorting table
Technical details
Brand Kadıoğlu
Model Magnum 2
Origin Turkey
Height 205 cm
Length 220 cm
Width 120 cm
Weight 750 kg (single unit without conveyor)
Drum volume 950 L
Energy Source 380 V Three Phase
Feature 1 Double drum
Feature 2 Brushed final cleaning
Feature 3 Fine speed adjustment
Feature 4 Manual exit cover
Feature 5 Dependent bidirectional rotatable drums
*It is not suitable for micro export regulations, just for partial loading.Please contact us for additional delivery costs for your country before order.
