Product typeHydraulic press for grape and fruit processingFeatures
cage 438×600 mm
nominal volume 80 l
membrane external diameter 220 mm
max pression 3 bar
temperature -10°/+50°
weight 39,5 kg
total height 1070
Discharge channel clearance 3

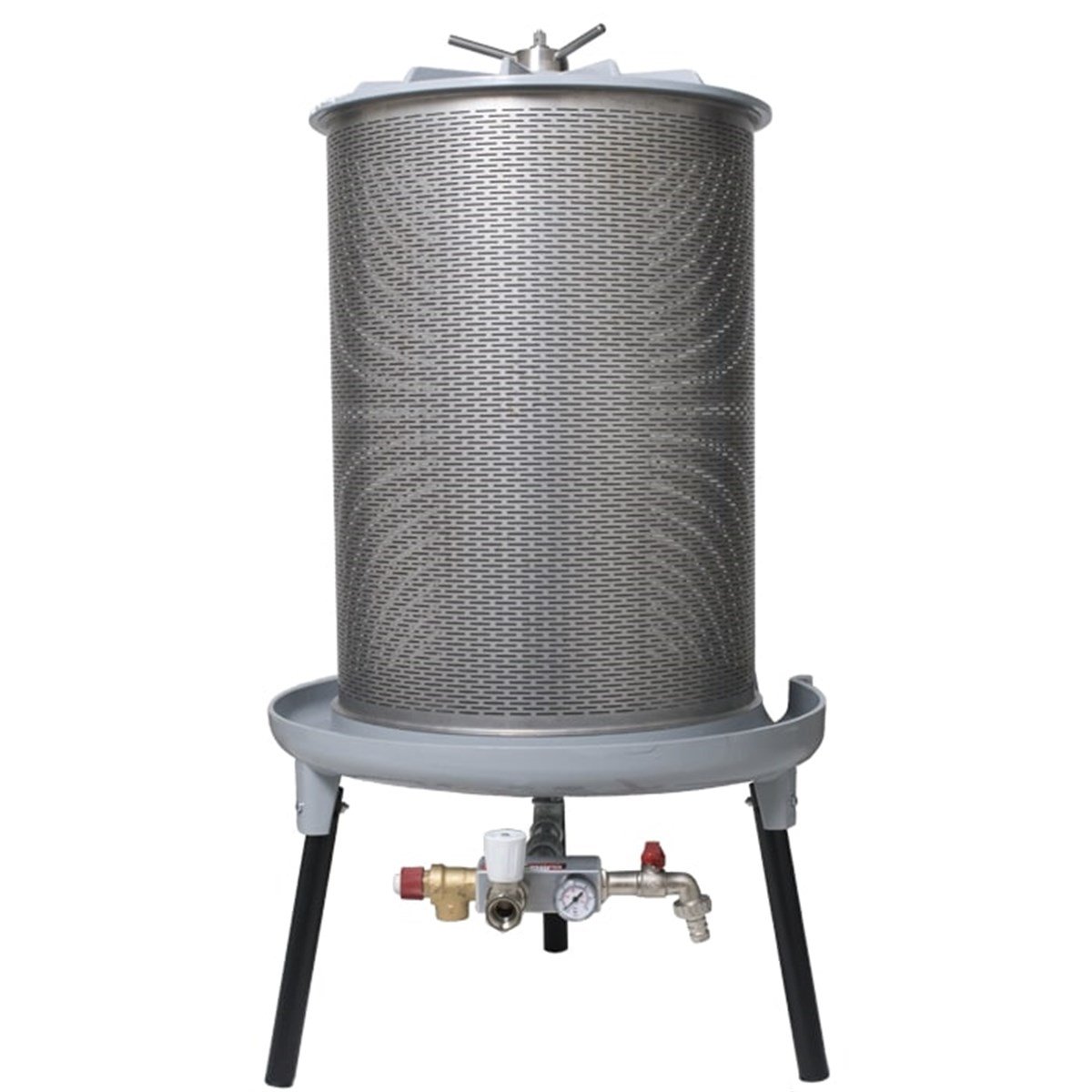

The PEW80 is the biggest of all the pneumatic presses models in Grifo’s range and contains up to 80 Lt. Made for the cold pressing of fruits such as grapes, apples, pomegranates and berries and also suitable for some vegetables, it allows to easily and quickly obtain must, siders, and more. Physical effort or electric power are not required, as it uses water pressure.The natural rubber sheet, suitable for food contact, is filled with water, swells and presses the fruit evenly against the wall. A supplied canvas filter allows the juice to get out without clogging the holes. Any spilling during the process goes into the supplied bag.With this process, you keep all the nutritional, antioxidants and physical properties of fruit.While the lid and the base are built in aluminum, everything else is made of stainless-steel. The pressure set is protected by a safety valve calibrated to 3 bar.
*It is not suitable for micro export regulations, just for partial loading.
