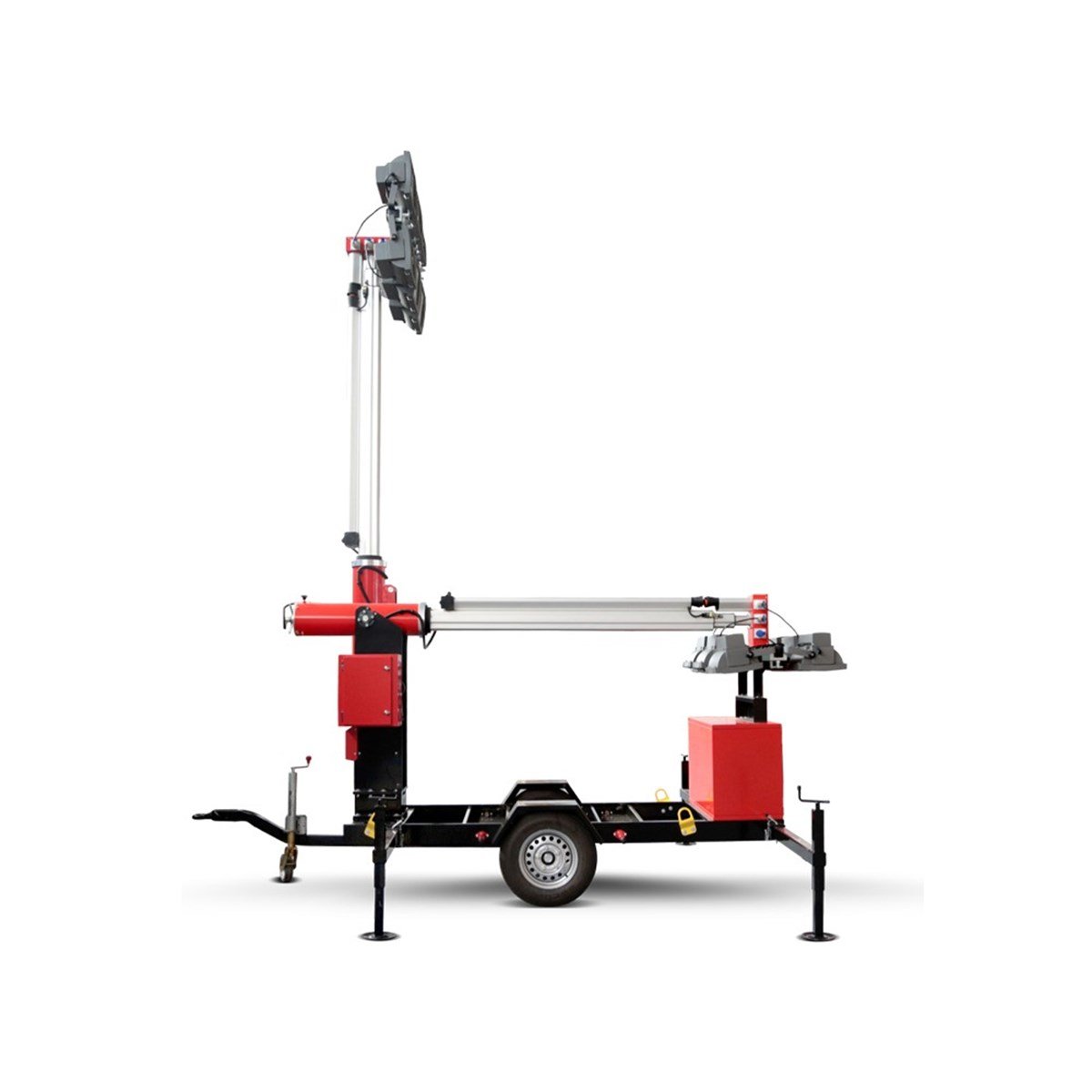

Himoinsa KT8000 Kit Tower Lighting Tower

KIT TOWER series includes three lighting tower models without generator set. The smallest in the series, the Mini Kit or the KT1000, is designed as an independent mass with a mast, lamps, auxiliary power outlets and a base with lifting hooks. It is ready to be connected to a single-phase generator set with a minimum power rating of 5.5 kW. The lighting capacity can illuminate up to 36,000 square meters, with 433,000 lumens.

In addition, the Mini Kit includes an optional balancing base for working on uneven surfaces, a common feature in the construction and mining industries. HIMOINSA generator sets in the KT8000 and KT12000 towers are B10 canopied soundproof generators that guarantee high noise reduction. The KIT TOWER KT8000 also includes 1,500W quartz iodine lamps and offers a light output of 198,000 lumens equivalent to 16,500 square meters lighting.

As for the KT12000, there are 6 2000W metal halide spot lamps that offer the largest light output of all KIT TOWER series. With a light output of 1,320,000 lumens, it can be illuminated up to 110,000 square meters.

Features
Series: Kit Tower
Model: KT8000
Power (P.R.P.): 0 kVA
Voltage: 440-220 V
Maximum dimensions (in working position): 4254 X 3262 X 9408 mm
Minimum dimensions (in transport mode): 4524 X 1578 X 2146 mm
Weight: 970 Kg


Pole
Mast type: hydraulic
Mast sections: 3
Rotation: 360º manual
Double security lock: standard
Lamps / Spot Lamps: 6 x 1500 W
Lamps type: Quartz iodine
Total lumen: 6 x 33. 000 = 198,000 lm


Canopy
Canopy: -
Auxiliary sockets: -
Lifting hook: Standard base frame
Chassis traction kit: standard
Light indication: hydraulic
Rims: jockey wheel

LED: +800 €

*It is not suitable for micro export regulations, just for partial loading. Lighting tower is able to transit trade for your country.
