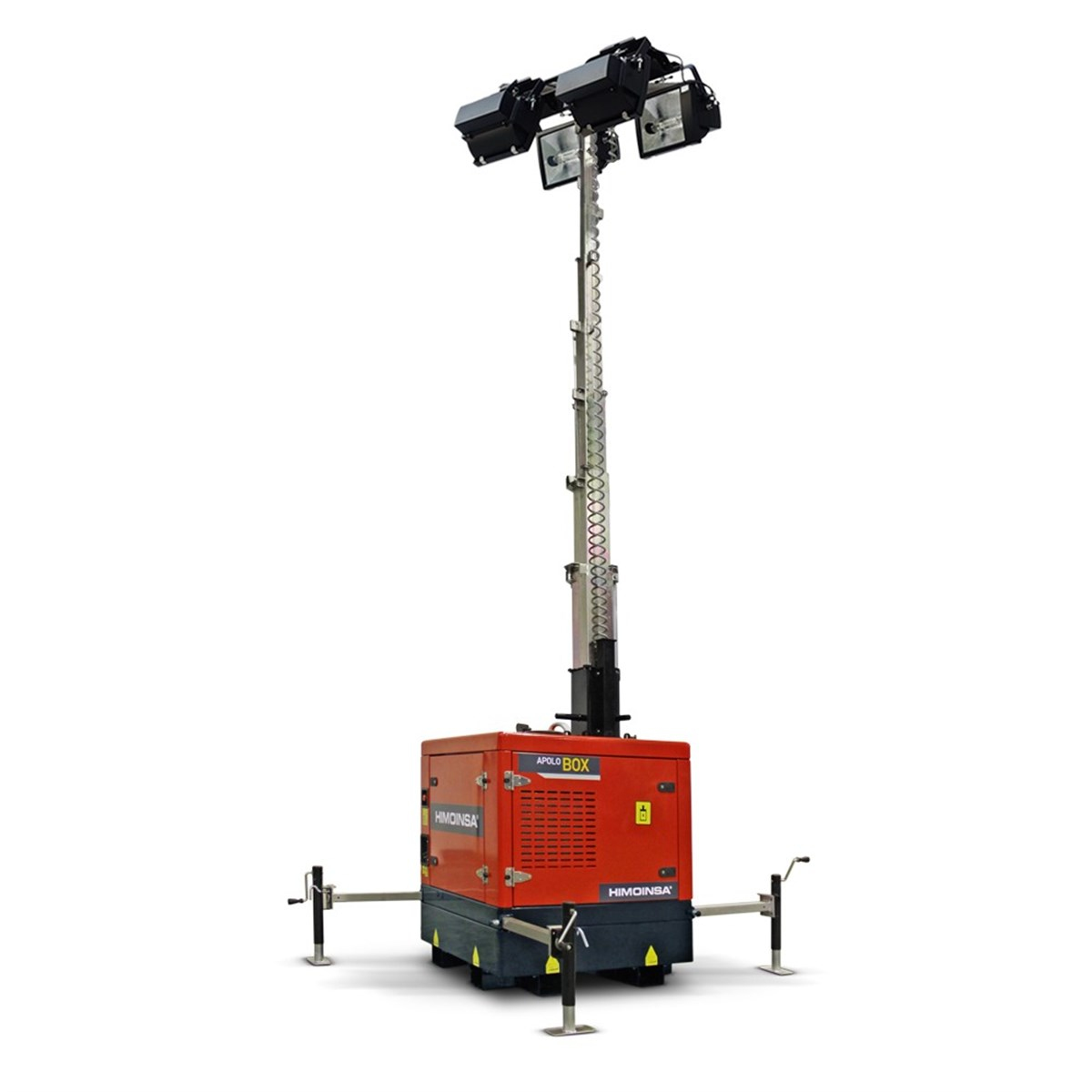

Himoinsa Box Lighting Tower

APOLO BOX lighting tower, size and characteristic square shape, allows fast and easy transport. Up to 20 lighting towers can be transported into a single 40-ft container, making it a star in the construction, entertainment or industries.

The small size of the APOLO BOX, in addition to the 126-hour working time, also has great advantages for working on roads and new substructures.

Four 1000W spotlights can illuminate up to 33,000 square meters. The hydraulic mast can rotate 360 ​​degrees and can extend up to 9 meters in recording time in less than 25 seconds.

Features
Series: Apolo Box
Model: Box M5
Power (P.R.P.): 6,4 kVA
Voltage: 230 V
Maximum dimensions (in working position): 2619 X 2649 X 9717 mm
Minimum dimensions (in transport mode): 1712 X 1649 X 2117 mm
Weight: 950 Kg
Storage capacity: 200
Autonomy: 128


Engine
Model: YANMAR 3TNV76GGEH
Frequency: 50 Hz
Cycle: 1,500
Engine type: 4-stroke diesel
Injection type: Indirect
Aspiration Type: Natural
Cylinders: 3 - L
Diameter x Stroke: 76 x 82
Total Engine Volume: 1.116
Cooling system: Cooler
Engine oil specifications: SAE 3 grade 10W30 / API class CD, CF
Fuel consumption (lights only): 1.59
Controller: Mechanical
Air filter: dry


Alternator
Pole: 4
Connection type (standard): Series
Coupling Type: S-5 7 "1/2
Degree of protection insulation: Class H
Degree of mechanical protection (according to IEC-34-5): IP23
Drive System: Self-excited, brushless
Voltage regulator: A.V.R. (Electronic)
Support type: Single bed
Connection system: flexible disk
Coating type: Standard (Vacuum impregnation)


Pole
Mast type: Hydraulic
Mast sections: 9
Rotation: 360º manual
Double security lock: standard
Lamps / Spot Lamps: 4 x 1000 W
Lamp type: Metal halide
Total lumen: 4 x 100,000 = 400,000 lm
Remaining power: 2,3 Kw


Canopy
Canopy: Standard
Auxiliary sockets: 1 x 32 Amp
Lifting hook: Standard base frame
Chassis Traction Set: -
Light indication: hydraulic
Wheels: -

LED: +800 €

*It is not suitable for micro export regulations, just for partial loading. Lighting tower is able to transit trade for your country.
