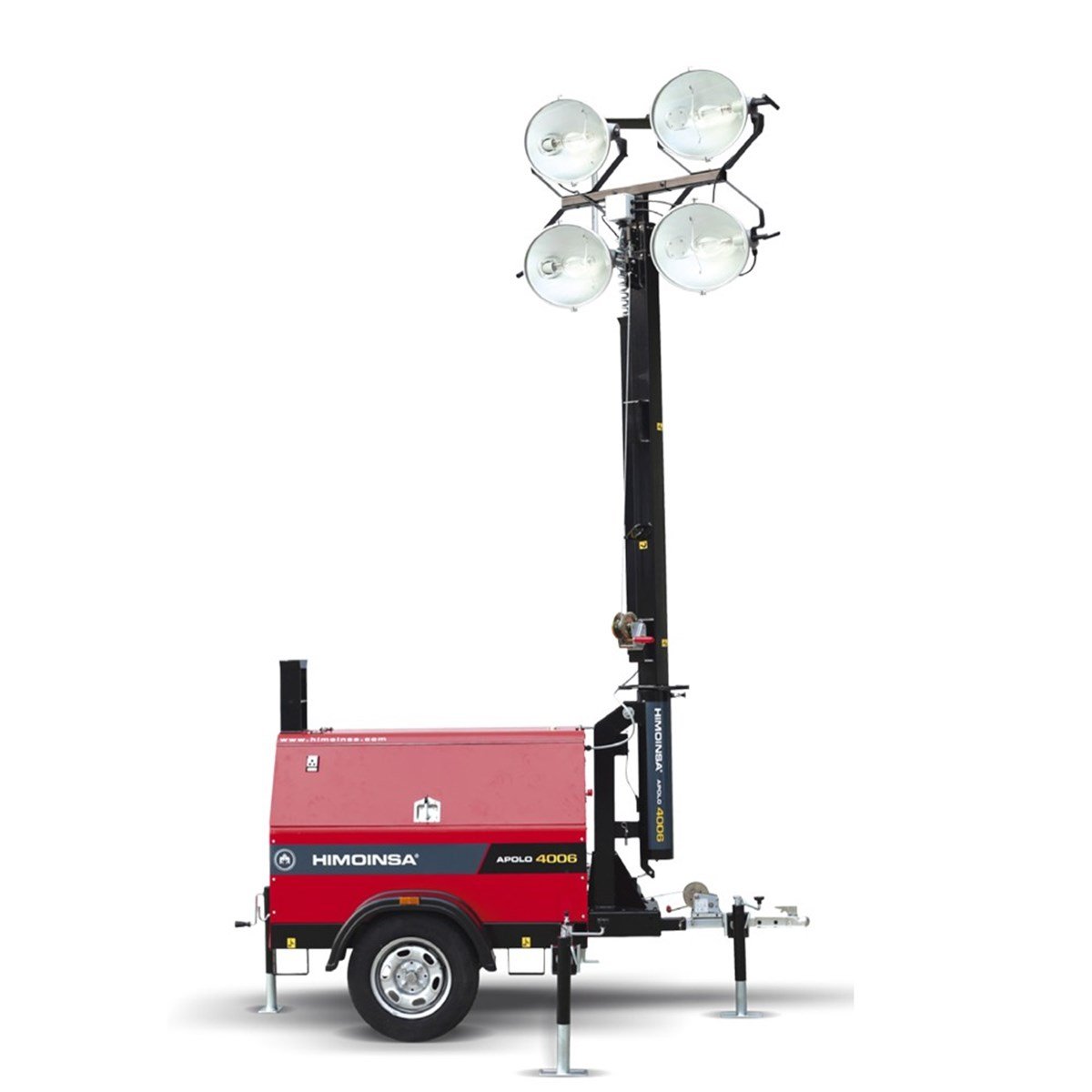

Himoinsa AS4006 Apolo Start Lighting Tower

In places where there is no other electricity infrastructure and where environmental conditions are favorable, lighting towers are frequently demanded. The APOLO START series of lighting towers are durable and ready to deal with ambient temperatures of up to 20 degrees below zero in the winter of the Cossack, up to 45 degrees Celsius.

With the AS4005 ECO model 6 meters high and 9 meters in other models, START series towers are among the most versatile and competitive products on the market. These towers are often quiet, but they do a very important job. The light they provide enables the operation of high-speed train lines or emergency services in natural disasters. These lighting towers can operate continuously for up to 70 hours, can work more than 7 nights without refueling and can illuminate up to 32,000 square meters with 4 1000W spotlights (384,000 lumens).

Features

Serial: Apolo Start
Model: AS4006 M5
Power (P.R.P.): 5.1 kVA
Voltage: 230 V
Maximum dimensions (in working position): 3162 X 2781 X 9068 mm
Minimum dimensions (in transport mode): 3944 X 1451 X 1892 mm
Weight: 755 Kg
Tank capacity: 114
Autonomy: 70

Engine
Model: YANMAR 3TNM72GHFCL
Frequency: 50 Hz
In R.p.m: 1,500
Engine type: 4-stroke diesel
Injection type: Indirect
Aspiration Type: Natural
Cylinders: 3 - L
Diameter x Stroke: 72 x 74
Total Motor Volume: 0.904
Cooling system: Cooler
Engine oil specifications: SAE 3 grade 10W30 / API class CD, CF
Fuel consumption (lights only): 1.64
Controller: Mechanical
Air filter: Dry

Alternator
Pole: 4
Connection type (standard): Series
Coupling Type: S-5 6.5 "
Degree of protection insulation: Class H
Mechanical protection degree (according to IEC-34-5): IP21
Drive System: Self-regulating brushless
Voltage regulator: Capacitor
Support type: Single bed
Connection system: Flexible disc
Coating type: Standard (Vacuum impregnation)

Pole
Mast type: manual
Mast sections: 3
Rotation: 360º guide
Double security lock: standard
Lamps / Spot Lamps: 4 x 1000 W
Lamp type: Metal halide
Total lumen: 4 x 96,000 = 384,000 lm
Remaining power: 1,1 Kw

Canopy
Canopy: Standard
Auxiliary sockets: -
Lifting hook: Standard base frame
Chassis traction kit: standard
Light Indicator: Manual
Wheels: 2 x 165R13

LED: +800 €

*It is not suitable for micro export regulations, just for partial loading. Lighting tower is able to transit trade for your country.
